Gravity Filters
The Gravity Filter is a sieve filter that works on natural gravity with little pre-pressure. This sieve filter is extremely suitable for efficiently filtering with low rinse water as a by-product.

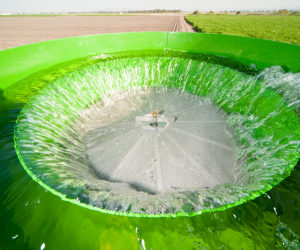

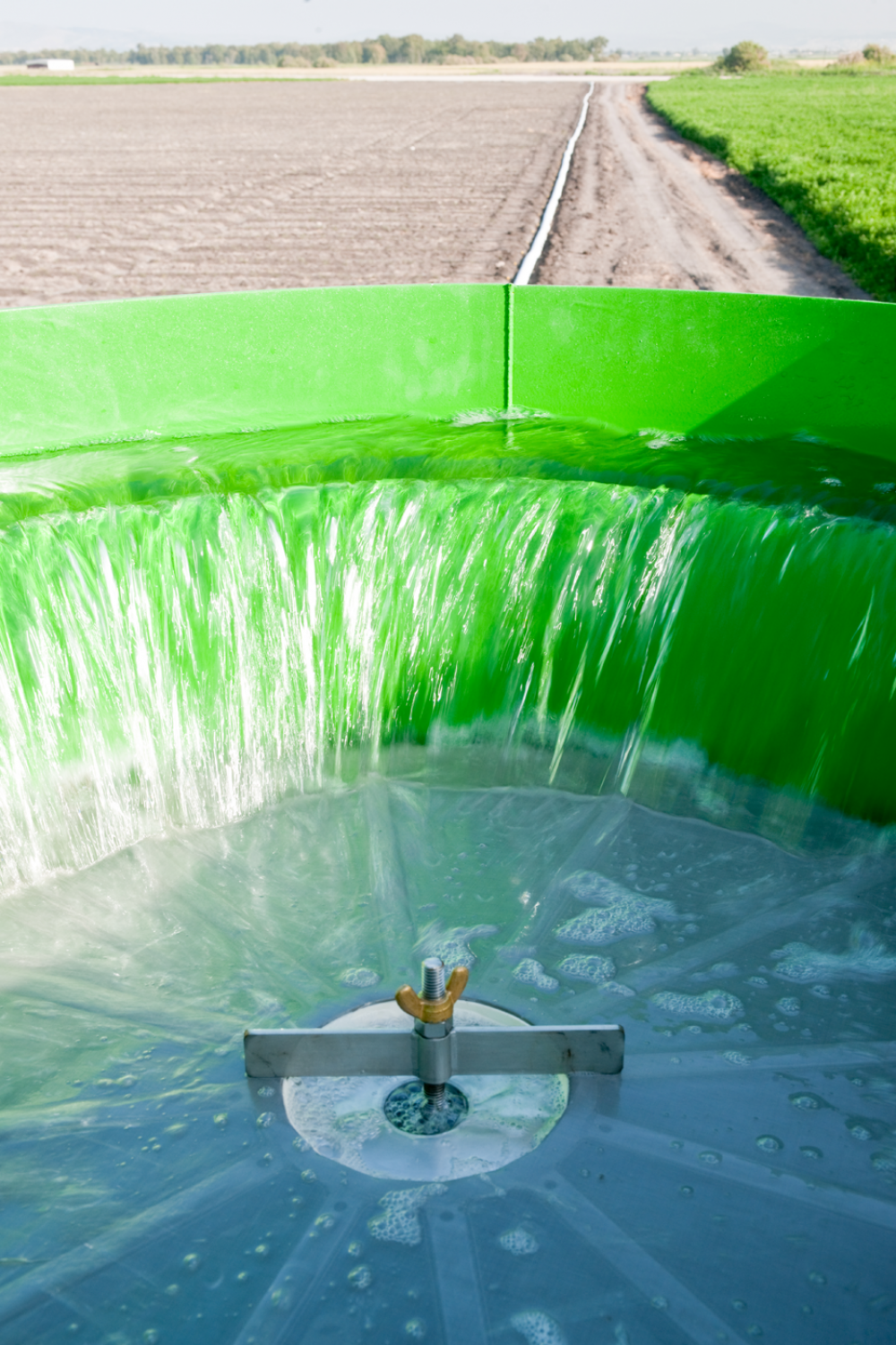

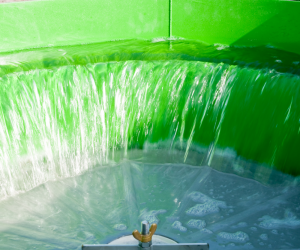

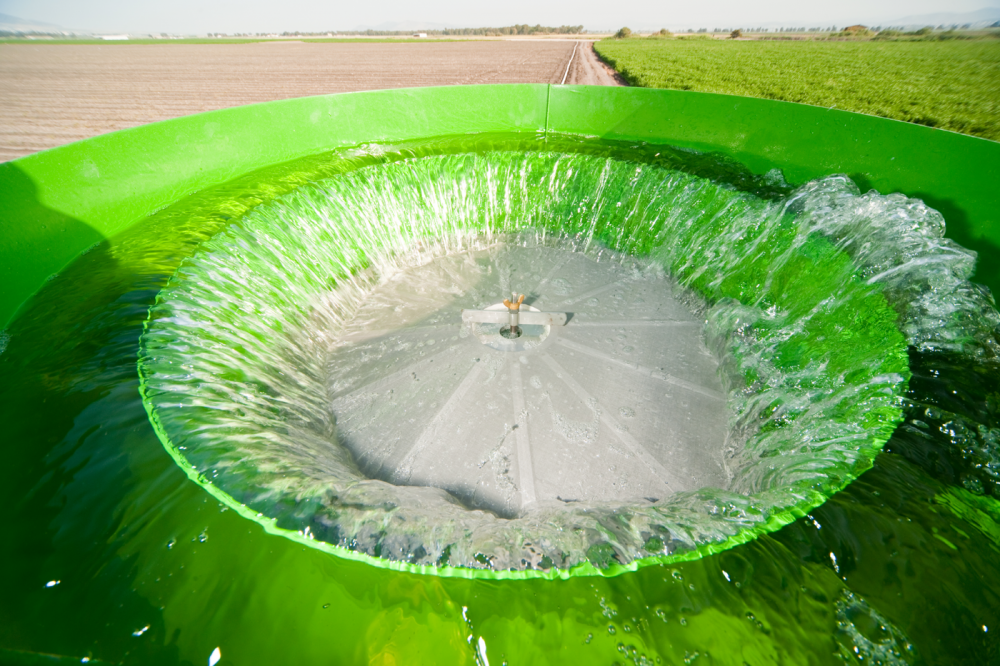

This gravity filter operates through a horizontal sieve filter, which causes water to flow down. The residual dirt is rinsed to the center of the filter by means of a sprayer. Through the center, the dirt goes down to a dirt entry point, which will be rinsed away at once in case of enough dirt.
The gravity filter is used for drip irrigation with sufficient height differences present in the plot to have enough pressure available for heavy filtration or prefiltration of large amounts of process water.
Gravity filters are available in 2 versions: 48" cross section with 6"' flange connections and 60" with 8" flange connections. In this case, the 48" has a maximum flow of 100 m³/h and the 60'' has a maximum flow of 170 m³/h.
